2 SST KNURLING TOOL HOLDERS

BUMP HOLDERS

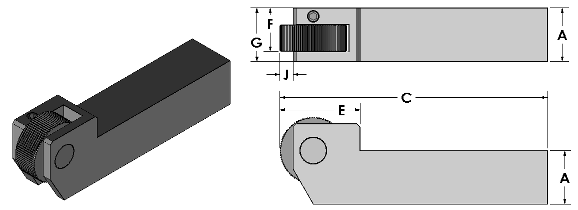

TOOL # STYLE KNURL PIN A C E F G J PRICE
H-BBP05B RH   206C .312 4.50 .625 .313 .375 .05 $65
H-BBP05BL LH BP


H-BBP06A RH 206C .375 4.00 .750 .313 .375 .05 $65

H-BBP06AL LH


H-BEP08A RH EP 308C .500 4.00 1.000 .400 .500 .09 $70
H-BEP08AL LH


H-BGK10A RH GK 410C .625 4.00 1.000 .525 .625 .12 $75
H-BGK10AL LH


H-BKP12B RH   412C .750 4.50 1.120 .625 .750 .18 $85
H-BKP12BL LH KP


H-BKP16C RH 416C 1.000 5.00 1.500 .875 1.000 .18 $95

H-BKP16CL LH


H-BKR12B RH   416C .750 4.50 1.120 .812 1.000 .18 $105
H-BKR12BL LH KR


H-BKR16C RH 416C 1.000 5.00 1.500 .812 1.000 .18 $105

H-BKR16CL LH


H-BOU16C RH OU 516C 1.000 5.00 1.500 .812 1.000 .25 $120
H-BOU16CL LH


H-BPH16C RH   816C 1.000 5.00 1.500 .812 1.000 .25 $120
H-BPH16CL LH PH


H-BPH20D RH 820C 1.250 6.00 1.500 1.000 1.250 .25 $145

H-BPH20DL LH



Bump type knurl holders are best suited to shorter work or longer work if knurling can be done close to the chuck or tail stock. If a long, raised diamond pattern is required, a two die holder, using one right hand and one left hand knurl is recommended (pages 4-6). Carbide pin and hex wrench are included. Knurl is not included. Setup Procedure: Mount the holder perpendicular to the spindle, in the turret or cross-slide. Move the holder toward the spindle until the knurl just contacts the work. Adjust a small amount deeper and make a test roll. If the knurl pattern is too shallow adjust it again.
