11 SST KNURLING TOOL HOLDERS

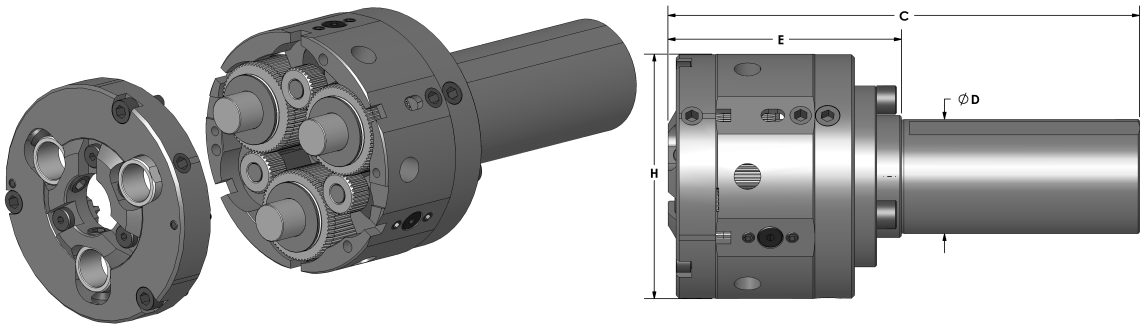

PRECISION, SYNCHRONIZED ROLLING HEADS

TOOL # KNURL   C D E H WORK CAP. PRICE
H-090J-10 KP     .625   1.88 .10 - .45 $1,000
H-090J-12   4.3 .750 1.80

H-100J-10 KP , MT   .625 2.25 .10 - .60 $1,200

H-100J-12     .750


The heads above use a center synchronizing gear. The dies are pre-set by replaceable bushings made special for each application in the center of the head (front and back). The dies are individually adjustable, within a range limited by the pre-set bushings. The pre-set bushings reduce change-over time when setting up to roll a different part. This design is extremely rigid, and capable of rolling long and coarse parts. Carbide pins and hex wrenches are included. Knurls and synchronizing gears are not included, and may need to be special ordered. Allow time for engineering and manufacturing.

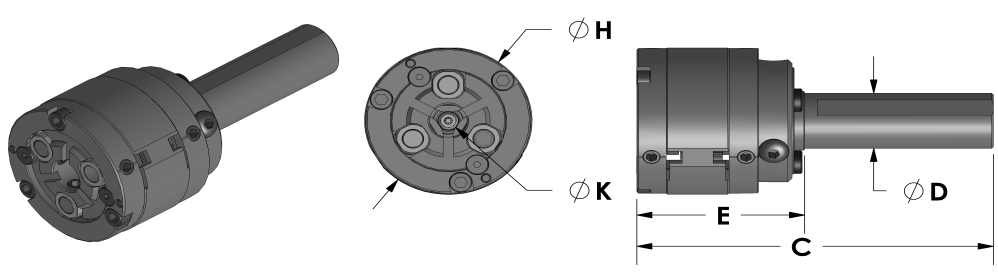

HEAVY-DUTY, SYNCHRONIZED ROLLING HEADS

TOOL # KNURL C D E H WORK CAP. PRICE
H-150G-12 PH , PI 6.0 .750 3.00 3.25 .2 - .90 $1,500
H-150G-16 1.000

H-175G-12 PH , PI 6.0 .750 3.00 3.75 .2 - 1.0 $1,700
H-175G-16 1.000

H-200G-12 PH , PI 6.0 .750 3.00 4.25 .2 - 1.0 $1,900
H-200G-16 1.000

H-225G-20 QN , RR 7.0 1.250 3.20 4.75 .35 - 1.2 $2,400
H-225G-24 1.500

H-250G-24 RR , SM 7.0 1.500 3.20 5.25 .45 - 1.3 $2,600
H-250G-28 1.750

H-300G-28 RR , SM 7.0 1.750 3.20 5.75 .50 - 1.4 $2,900
H-300G-32 2.000


The heavy-duty type heads above can use either the center gear like the precision type, or three gears around the dies (as shown), which leaves the center open. As in the precision type above, the dies are individually adjustable, within a range limited by the pre-set bushings. The pre-set bushings reduce change-over time when setting up to roll a different part. This design is extremely rigid, and capable of rolling long and coarse parts. Carbide pins and hex wrenches are included. Knurls and synchronizing gears are not included, and may need to be special ordered. Allow time for engineering and manufacturing.
